from PyQt6.QtWidgets import QApplication

app = QApplication([“”,“”]) clipboard = app.clipboard() mimeData = clipboard.mimeData() print(“Current clipboard offers formats: ” + str(mimeData.formats())) for f in mimeData.formats():

  print("---- %s ----" % f)
  data = str(mimeData.data(f))
  if len(data) > 100:
      print(data[:100] + " [...]")
  else:
      print(data)
  print("")

~~~~

Microsoft Windows

• Clipboard formats.aspx) describe the type of data in the clipboard
• Clipboard may contain the same data in different formats (e.g., as plain text, HTML, RTF)
• Standard formats.aspx) (CFBITMAP, CFUNICODETEXT, …)
• Registered formats (custom, for data exchange between applications, e.g., CF_HTML.aspx)
• Private formats (for internal use)
• Access via SetClipBoardData(format, data), IsClipBoardFormatAvailable(format).aspx), EnumClipboardFormats.aspx), GetClipBoardData().aspx)
• Clipboard needs to be explicitly cleared before copying data to it.
• Further Reading: “How the clipboard works” (Part 1, Part 2)

Mac OS X / macos

• “Pasteboard” for historical reasons
• manager process pbs accessed via APIs
• Standard classes for clipboard content (NSString, NSAttributedString, NSImage, NSURL, NSColor, NSSound), general class NSPasteboardItem or custom classes adopting NSPasteBoardReading protocol
• additional find buffer for text searches
• see also: pasteboard programming guide

iOS

• General Pasteboard and Find Pasteboard similar to macos
• apps can create additional pasteboards
• Uniform Type Identifier (UTI) describes type of data (e.g., public.jpeg or com.myCompany.myApp.myType)
• Pasteboard class provides convenience methods for copying/pasting images, URLs, …
• (documentation)

X11 (Linux/BSD)

• Main difference to OS X and Windows: no data is actually stored in the clipboard
• Instead:
  • On “copying” data to the clipboard, the application tells the X Server that it now owns the CLIPBOARD selection.
  • The previous owner of the CLIPBOARD selection gets notified.
  • When pasting data from the clipboard, the application directly requests the data from the application that owns the CLIPBOARD selection.
  • Content negotiation: pasting applications asks for data types the application can provide and can also try to request data in arbitrary format.
• furthermore: PRIMARY buffer (holds selected text, pasted via middle click) and SECONDARY buffer (mostly unused), similar mode of operation as clipboard.
• data types identified via MIME types

Further reading: explanation by Jamie Zawinski, Freedesktop.org clipboard "specification", ICCCM: Peer-to-Peer Communication by Means of Selections, X11: How does “the” clipboard work?

Wayland (Linux)

• Wayland: successor to X11 protocol
• Similar to X11: source application creates a wl_data_source, receiving application sees it as wl_data_offer object.
• Source application creates offer for each MIME type that is offered.
• Receiving application sends selected MIME type and file descriptor to source application.
• Source application writes data into file descriptor.

Further reading: Wayland protocol: data sharing, Wayland clipboard and drag & drop

Android

• Clipboard holds one ClipData object at a time, consisting of:
  • ClipDescription object containing list of MIME types
  • one or more ClipData.Items, all having the same type: text, URI, or Intent
• Content providers allow for retrieving data with a specific MIME type via a URI
• Usage: [ClipboardManager](http://developer.android.com/reference/android/content/ClipboardManager.html).setPrimaryClip(ClipData)
• facilities for copying data structures and streams

Qt Implementation

• Wrappers for every platform (e.g., X11, Windows, OS X)
• QClipboard
• data type indicated via MIME

Clipboard Managers

• listen to changes in clipboard state (X11: needs to grab ownership of CLIPBOARD selection)
• add additional features
  • persist history
  • select format to paste
  • modify data
  • add formats (e.g., OCR)
  • shortcuts for managing clipboard contents
  • …
• See also: CopyQ, Wikipedia: Clipboard Manager

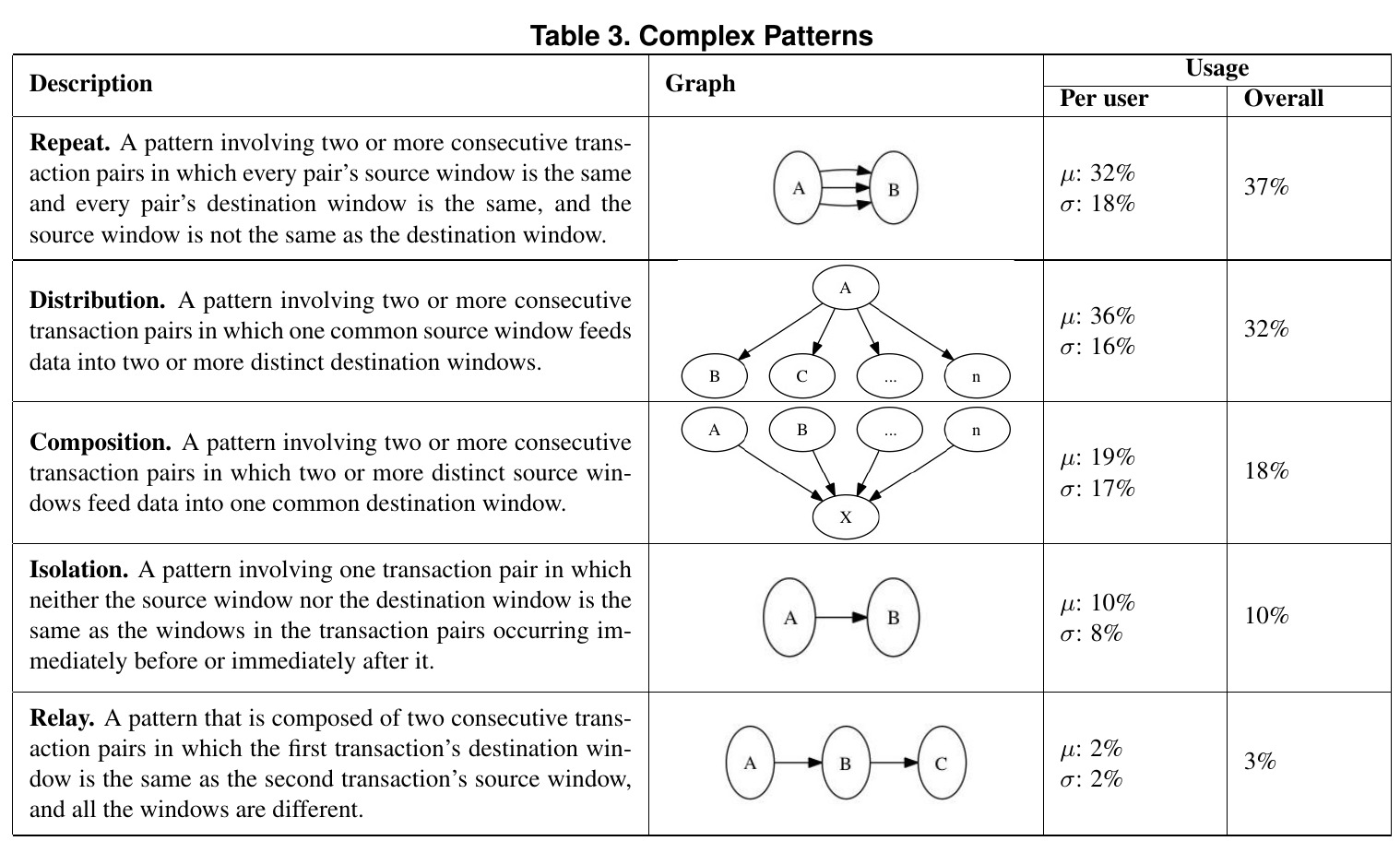

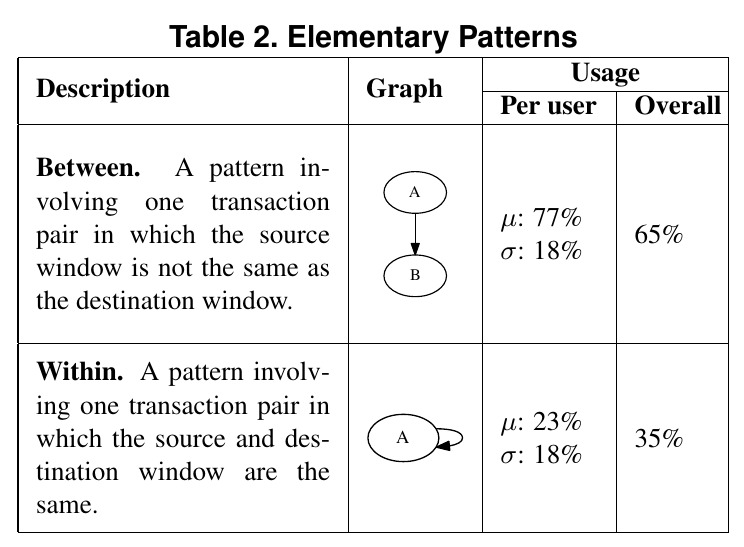

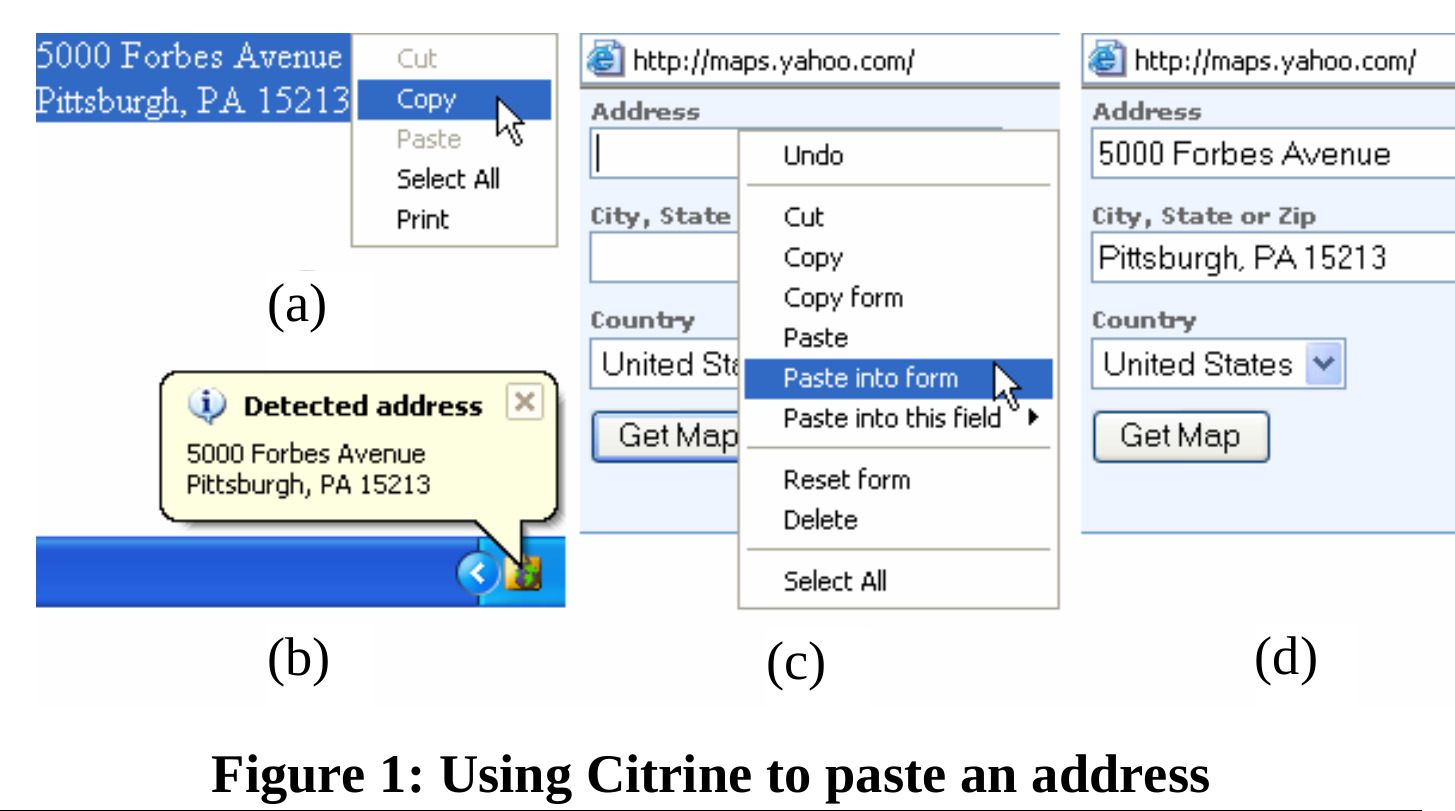

Academic research on clipboards

Further Reading

• "Copy-paste conclusions: put the metadata on the clipboard"

  • “Step by step we’ve been teasing apart the clipboard to see how metadata could survive a copy-paste between applications. If the metadata survives, then the destination can be used to automatically credit the original source and the creator, without the user having to do it manually.” "On Clipboard Formats – 2006-09-15"
  • “The Carbon version of Gecko doesn’t interoperate with anything but other Carbon Gecko processes. I figured I should try to do better with the Cocoa nsClipboard.

  This stuff is so underdocumented that it isn’t even funny. This document is written so that others might find something when they search the Web.”*

Drag and Drop

• X11: DND extension
• Windows: Object Linking and Embedding (OLE)
• OS X: Cocoa Drag Manager
• generally similar to clipboard operation
• source application may offer multiple formats
• on drag start: change cursor to indicate dragged object
• when dragging into another window: receiving window can accept or reject drag
• data is only copied on release of mouse button

DnD Qt Implementation

• QDrag, QDrag{Enter,Leave,Move}Event, QDropEvent
• again: wrappers with OS-specific code
• MIME-encoded content (like X11), gets converted for Windows and OS X.
• Code example: tutorial at zetcode.com and dragdrop_example.py in GRIPS.

Your Tasks

• Try out the clipboard and drag-and-drop examples
• Find out what kind of data different applications offer on different operating systems
• Write a small tool that intelligently modifies the clipboard contents (e.g., removing all passwords from plain text)

Recap

• Different clipboard implementations across operating systems
• Data often available in different formats
• X11, Wayland have an asynchronous clipboard
• format negotiation in X11 is quite a mess

END
